Shape art: make blog banners

This blog needed banners. I wanted each post to have its own image, with a consistent visual language and versions that worked on light and dark pages. Finding and adjusting them by hand would have become another little job to keep doing.

So I built a little tool with Codex, using GPT-6.1 Sol. It is called Shape Art, and it paints the images you see at the top of these posts.

It starts with the six shapes I use to explain Prompt Studio’s building blocks: pages, commands, editors, skills, hooks, and automation. It arranges them on a sheet, then adds soft edges, uneven pigment, and grain. The result looks like watercolor, but every image comes from a small set of saved settings. No image model is involved in painting a piece.

Want something similar? Use this prompt as a starting point:

Build a Shape Art tool inside Prompt Studio. Use the six shapes from the website’s illustrations to paint watercolor-like images, with soft edges, uneven pigment, and grain.

Give me a live preview and controls for the layout, shapes, colors, and paint. Let me save each piece as a PNG and an editable JSON recipe. The same recipe should reproduce the same image.

Make the actions available to agents through the CLI too. Add random generation with a chosen background and dimensions: --background ink --width 1600 --height 400 for a blog banner. I want matching paper and ink versions, with a different composition for each post.

Build it as a repository-local extension using Prompt Studio’s public APIs, shared UI components, and project file storage.

How it was built and integrated

Codex wrote the tool in TypeScript. The painting code places the shapes, softens their outlines, and adds layers of pigment and grain. The browser preview and PNG exporter use the same renderer, so what I adjust in the editor is what gets saved. A seed makes the random choices repeatable.

The integration is a small extension. Its extension declaration registers a page, a sidebar entry, commands, and a skill that explains the tool to agents. The editor uses Prompt Studio’s shared UI components and invokes the same commands exposed by the CLI. Those commands read and write through the public project-files interface. Shape Art owns its recipes and painting; Prompt Studio supplies the workbench, command execution, and access to files.

I could then open the tool in the workbench, try different compositions, and ask the agent to change it as the blog’s needs became clearer. The CLI generator and paired light and dark banners grew out of that loop. Tests check repeatable rendering, saved files, and the generation options. Finally, the website imports the saved PNGs and selects the banner for its active theme.

Make something you want to look at

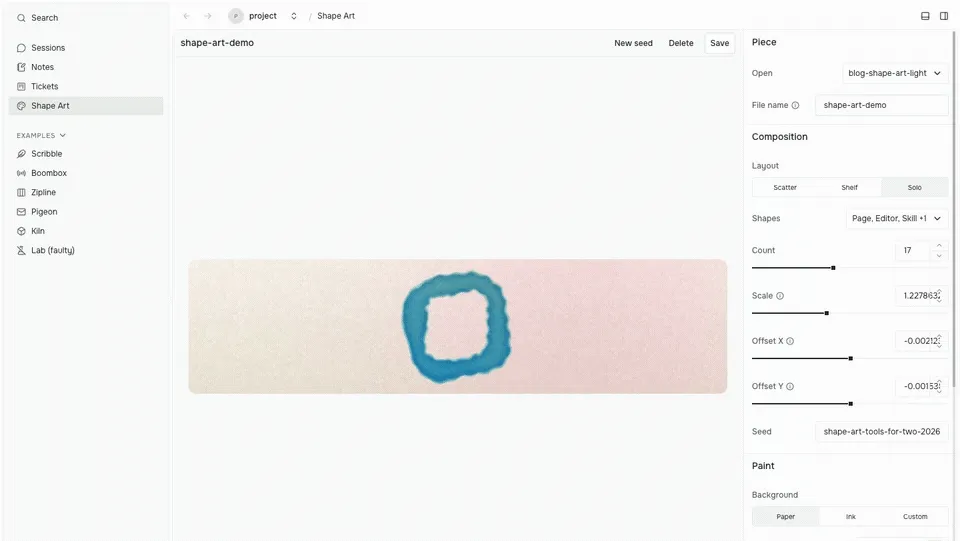

The editor gives me a preview on the left and controls on the right. I can scatter shapes, rest them on a shelf, or paint one large shape. I can choose which shapes appear, move the composition, change the background, and adjust the paint.

The preview changes as I work. New seed gives the same settings another arrangement and texture. It is a quick way to try a few versions before choosing one.

A real capture of Shape Art in an isolated Prompt Studio project. The editor and CLI work on the same saved pieces.

When I like the result, I give it a file name and press Save. That writes two files: a PNG I can use and a JSON recipe I can return to. For the banner above, those files are design/art/blog-shape-art.png and design/art/blog-shape-art.json.

The recipe matters as much as the image. It keeps the dimensions, chosen shapes, colors, paint settings, and seed: the value that makes the random choices repeatable. Given the same complete recipe, Shape Art paints the same image again. I can put both files in Git, review a change, or ask an agent to adjust a particular setting.

Give the agent the same tool

Shape Art’s actions are also CLI commands. An agent can ask for help, generate a piece, read its recipe, save an edited version, and repaint it. It does not need to find controls on a screenshot or write its own image exporter.

For example, this creates a wide banner with an ink background:

pst shape-art piece generate \
  --id my-next-banner \
  --background ink \
  --width 1600 \
  --height 400

The composition and paint settings are randomized, and the complete recipe and PNG are saved. The dimensions make a 4:1 banner. An existing id is replaced, so I use a new name for a new piece.

The agent can inspect what it made:

pst shape-art piece read --id my-next-banner

Then it can edit the saved JSON and repaint it:

pst shape-art piece render --id my-next-banner

The editor’s Save button and the CLI’s piece save command call the same extension handler. They write to the same project folder. When an agent creates a piece, it appears in the editor’s Open list; I choose it to inspect and adjust it. The agent can do the repetitive work while I make the visual choices.

How I use it for this blog

I ask the agent for a different composition for every post, then keep the recipe beside the image. I save a paper version and an ink version with the same seed, shapes, and placement. Only the two background colors change. The website shows the version that matches its theme.

That gives me a repeatable workflow without making every post look identical. If a banner feels too busy, I can open it and reduce the count. If I need another size, the agent can change the dimensions and repaint it. The saved recipe gives either of us a useful place to start.

A small tool with its own job

Shape Art is currently a repository-local extension in the Prompt Studio source project. It is not bundled with every installation. Its source and usage notes describe the tool if you want to explore it in a local checkout.

It uses Prompt Studio’s public extension interfaces for its page, controls, commands, and project files. The platform provides a place for it to live and a way for people and agents to invoke its actions. The extension owns the painting.

I do not need a watercolor generator built into the core of Prompt Studio. I need a place where a tool like this is easy to build, use, and change. That is the point of the workbench: your tools can be as specific as the work you are doing.

If you have one small task you keep repeating, ask an agent to build a tool for it. And if you are building an extension, make its actions CLI-ready so you and your agent can use it together.
